04PB2LF007
现货供应04PB2LF007
04PB2LF007
商品品牌:MADISON
Madison Cable麦迪逊高端高品质高速电缆,2对30AWG计算机通讯线缆04PB2LF007,Differential Impedance: 100 ± 5 Ohms @ TDR ;Mutual Capacitance: 15.5 pF/ft [51 pF/m] Nominal ; Time Delay: 1.55 ns/ft [5.1 ns/m] Nominal;Time Delay Skew (Within Pair): 50 ps/5.5 m Maximum;
邮件询04PB2LF007 我要询价     QQ在线客服    电话:0755-86250632
您在本网站所询的商品,我们的工作人员将 电话联系您并做最终确认。感谢您对本站的关注。另外网站商品图片及资料仅供参考,请以实物为准。
04PB2LF007 详细介绍

04PB2LF007】Madison Cable麦迪逊高端高品质高速电缆,2对30AWG计算机通讯线缆04PB2LF007



04PB2LF007 CONSTRUCTION

Pair Component
Conductor: 30 AWG Solid Silver Plated Copper, 0.010 Inch [0.25 mm] Diameter
Insulation: 0.012 Inches [0.30 mm] of Polyolefin, 0.034 Inch [0.86 mm] Diameter, Color – Natural
Pair: 2 Singles Laid Flat and Parallel
Drain Wire: 30 AWG Solid Tin Plated Copper, 0.010 Inch [0.25 mm] Diameter
Pair Shield: Aluminum/Polyester Tape, Aluminum Side Facing In 25% Overlap, Color – Yellow
Pair Jacket: Polyester Tape
Pair Diameter: 0.044 x 0.072 Inches [1.12 x 1.83 mm] Nominal
Pair Identification: Pairs sequentially numbered on entire length of pair.

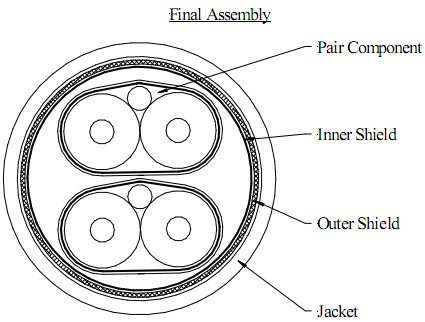

04PB2LF007 Final Assembly
Core: 2 Pairs (#1-2) Cabled Together
Inner Shield: Aluminum/Polyester/Aluminum Tape, 25% Overlap
Outer Shield: 38 AWG Tin Plated Copper Braid, 85% Coverage
Jacket: 0.026 Inches [0.66 mm] of Flexible PVC, Color – Black
Diameter: 0.172 Inches [4.37 mm] Nominal
Print Legend (White Ink): “MADISON CABLE {Mfg. Location Code} (UL) TYPE CL2 75°C 30 AWG  CSA AWM II A/B 75°C 30V FT4 TurboTwin 10G RoHS COMPLIANT {Date Code}”

04PB2LF007 ELECTRICAL CHARACTERISTICS
Differential Impedance: 100 ± 5 Ohms @ TDR
Mutual Capacitance: 15.5 pF/ft [51 pF/m] Nominal
Time Delay: 1.55 ns/ft [5.1 ns/m] Nominal
Time Delay Skew (Within Pair): 50 ps/5.5 m Maximum
Time Delay Skew (Between Pair): 350 ps/5.5 m Maximum

Madison Cable

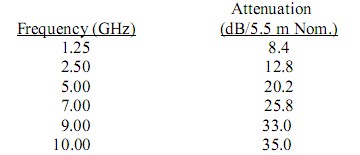

Differential to Common Mode Conversion (SCD21): 28 dB Nominal
Conductor DC Resistance: 100 Ohms/kft [330 Ohms/km] Nominal @ 20°C

04PB2LF007 MECHANICAL CHARACTERISTICS
Bend Radius (5 x OD): 1.0 Inch [25.4 mm] Minimum, tested in accordance with SFF 8417

04PB2LF007 SAFETY CERTIFICATION
UL Listing: Type CL2 as specified in Article 725 of the National Electrical Code CSA Certification: AWM II A/B 75°C 30 Volts FT4
RoHS Compliance: In Accordance to European Directive 2002/95/EC, Issue 13.2.2003
