【04PF2LF007】Madison Cable麦迪逊高端高品质高速电缆，2对24AWG（线径）10G TurboTwin 计算机通讯线缆04PF2LF007


04PF2LF007 Pair Component
Conductor: 24 AWG Solid Silver Plated Copper, 0.0201 Inch [0.51 mm] Diameter
Insulation: 0.0235 Inches [0.60 mm] of Polyolefin, 0.067 Inch [1.70 mm] Diameter, Color – Natural
Pair: 2 Singles Laid Flat and Parallel
Drain Wire: 25 AWG Solid Tin Plated Copper, 0.0179 Inch [0.45 mm] Diameter
Pair Shield: Aluminum/Polyester Tape, Aluminum Side Facing In, Color – Yellow
Pair Jacket: Polyester Tape
Pair Diameter: 0.075 x 0.140 Inches [1.91 x 3.56 mm] Nominal
Pair Identification: Pairs sequentially numbered on entire length of pair.

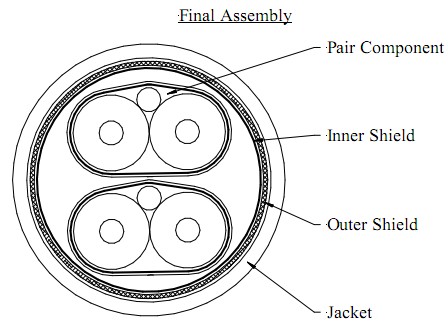

04PF2LF007 Final Assembly
Core: 2 Pairs (#1-2) Cabled Together
Inner Shield: Aluminum/Polyester/Aluminum Tape, 25% Overlap
Outer Shield: 38 AWG Tin Plated Copper Braid, 85% Coverage
Jacket: 0.027 Inches [0.68 mm] of Flexible PVC, Color – Black
Diameter: 0.250 ± 0.010 Inches [6.35 ± 0.25 mm] Print Legend (White Ink): “MADISON CABLE {Mfg. Location Code} (UL) TYPE CL2 75°C 24 AWG CSA AWM II A/B 75°C 30V FT4  TurboTwin 10G RoHS COMPLIANT {Date Code}”

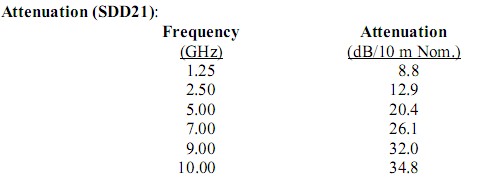

04PF2LF007 ELECTRICAL CHARACTERISTICS
Differential Impedance: 100 ± 5 Ohms @ TDR
Mutual Capacitance: 15.5 pF/ft [51 pF/m] Nominal
Time Delay: 1.55 ns/ft [5.1 ns/m] Nominal
Time Delay Skew (Within Pair): 64 ps/10 m Maximum
Time Delay Skew (Between Pair): 350 ps/10 m Maximum

Differential to Common Mode Conversion (SCD21): 28 dB Nominal
Conductor DC Resistance: 27 Ohms/1000 ft [88 Ohms/km] Nominal @ 20°C

04PF2LF007 PHYSICAL CHARACTERISTICS
Bend Radius (5 x OD): 1.5 Inch [38.1 mm] Minimum, tested in accordance with SFF 8417

04PF2LF007 SAFETY CERTIFICATION
UL Listing: Type CL2 as specified in Article 725 of the National Electrical Code CSA Certification: AWM II A/B 75°C 30V FT4
RoHS Compliance: In Accordance to European Directive 2002/95/EC, Issue 13.2.2003
