【08KEJLF003】Madison Cable麦迪逊高端高品质高速电缆，4对26AWG计算机通讯线缆08KEJLF003。

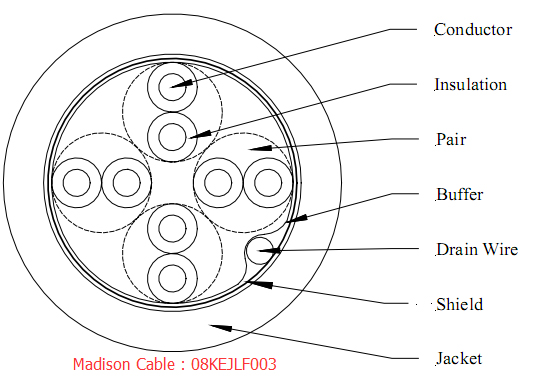

【08KEJLF003】CONSTRUCTION
08KEJLF003 Pair Component
Conductor: 26 AWG 7/34 Bare Copper, 0.019 Inches [0.48 mm] Diameter 。
Insulation: 0.010 Inch [0.254 mm] of Foam Polyethylene, 0.039 Inches [0.99 mm] Diameter 。
Pair: 2 Insulated Conductors Twisted Together, Lay Lengths Varied Between Pairs to Minimize Crosstalk。

08KEJLF003 Final Assembly
Core: 4 Pairs (#1-4) Cabled Together 。
Buffer: Foam Polypropylene Tape, 50% Overlap 。
Drain Wire: 26 AWG 7/34 Tin Plated Copper, 0.019 Inches [0.48 mm] Diameter 。
Shield: Aluminium/Polyester Tape, Aluminium Side Facing In, 25% Overlap 。
Jacket: 0.026 Inches [0.66 mm] of XPbT, Color – Gray  。
Diameter: 0.230 Inches [5.84 mm] Nominal 。
Print Legend: “MADISON CABLE FTP CATEGORY 5 PATCH CABLE MS 101-3344 RoHS COMPLIANT”。

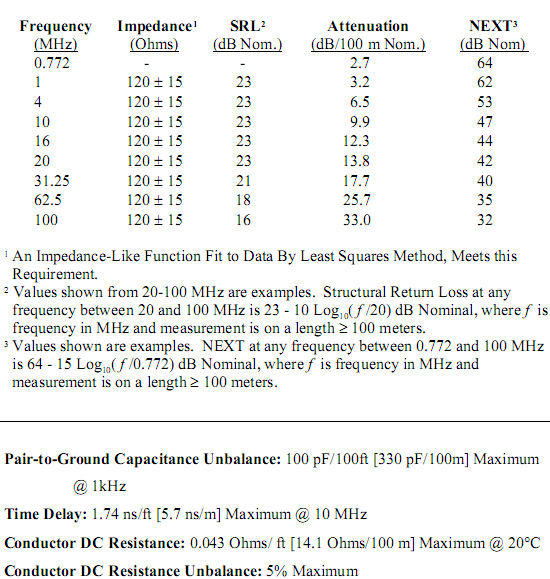

【08KEJLF003 】ELECTRICAL CHARACTERISTICS
