16KB2LF046
现货供应16KB2LF046
16KB2LF046
商品品牌:MADISON
Madison Cable麦迪逊高端高品质高速电缆,8对30AWG(线径)10G TurboTwin QSFP计算机通讯线缆16KB2LF046
邮件询16KB2LF046 我要询价     QQ在线客服    电话:0755-86250632
您在本网站所询的商品,我们的工作人员将 电话联系您并做最终确认。感谢您对本站的关注。另外网站商品图片及资料仅供参考,请以实物为准。
16KB2LF046 详细介绍

Madison Cable麦迪逊高端高品质高速电缆,8对30AWG(线径)10G TurboTwin QSFP计算机通讯线缆16KB2LF046


16KB2LF046 CONSTRUCTION
Pair Component
Conductor: 30 AWG Solid Silver Plated Copper, 0.010 Inch [0.25 mm] Diameter
Insulation: 0.0098 Inches [0.249 mm] of Foam Polyolefin, 0.029 Inch [0.74 mm] Diameter, Color – Natural
Pair: 2 Singles Laid Flat and Parallel
Pair Drain Wire: 30 AWG Solid Tin Plated Copper, 0.010 Inch [0.25 mm] Diameter
Pair Shield: Aluminum/Polyester Tape, Aluminum Side Facing In, 25% Overlap, Color – Yellow
Pair Jacket: Polyester Tape
Pair Diameter: 0.039 x 0.064 Inches [0.99x 1.63 mm] Nominal
Pair Identification: Pairs sequentially numbered on entire length of pair.

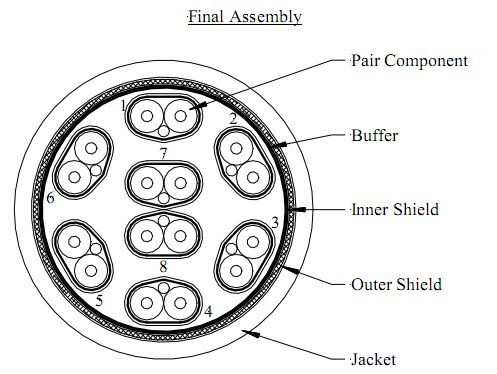

16KB2LF046 Final Assembly
Core: 8 Pairs (#1-8) Cabled Together
Buffer: Foam Polyolefin Tape
Inner Shield: Aluminum/Polyester Tape, Aluminum Side Facing Out, 25% Overlap
Outer Shield: 38 AWG Tin Plated Copper Braid, 85% Coverage
Jacket: 0.029 Inches [0.74 mm] of Flexible PVC, Color – Black
Diameter: 0.265 Inches [6.73 mm] Nominal
Print Legend (White Ink): “MADISON CABLE {Mfg. Location Code}(UL) TYPE CL2 75°C 30 AWG  CSA AWM II A/B 75°C 30V FT4
TurboTwin™ 10G SAS 102-2061 10G SUBSTANCE COMPLIANT 2011/65/EU {Date Code}”

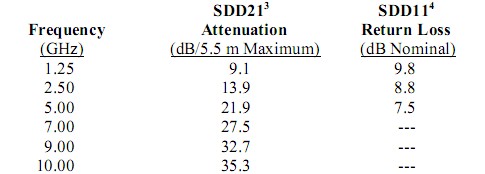

16KB2LF046 ELECTRICAL CHARACTERISTICS
Differential Impedance: 100 ± 5 Ohms @ TDR
Common Mode Impedance: 32.5 ± 7.5 Ohms
Mutual Capacitance: 14 pF/ft [46 pF/m] Nominal
Time Delay: 1.35 ns/ft [4.43 ns/m] Nominal
Time Delay Skew (Within Pair): 50 ps/5.5 m Maximum

Differential to Common Mode Conversion (SCD21)3: 26 dB Minimum
Near End Crosstalk: 26 dB Minimum
Conductor DC Resistance: 0.10 Ohms/ft [330 Ohms/Km] Nominal @ 20°C

16KB2LF046 MECHANICAL CHARACTERISTICS
Bend Radius (5 x OD): 1.3 Inches [33 mm] Minimum

16KB2LF046 SAFETY CERTIFICATION
UL Listing: Type CL2 as specified in Article 725 of the National Electrical Code CSA Certification: AWM II A/B 75°C 30 Volts FT4
RoHS II Material Compliance: In accordance with EU Directive 2011/65/EU for the Restriction of Hazardous Substances
