16KE2LF035
现货供应16KE2LF035
16KE2LF035
商品品牌:MADISON
Madison Cable麦迪逊高端高品质高速电缆,8对26AWG(线径)10G TurboTwin QSFP计算机通讯线缆16KE2LF035
邮件询16KE2LF035 我要询价     QQ在线客服    电话:0755-86250632
您在本网站所询的商品,我们的工作人员将 电话联系您并做最终确认。感谢您对本站的关注。另外网站商品图片及资料仅供参考,请以实物为准。
16KE2LF035 详细介绍

Madison Cable麦迪逊高端高品质高速电缆,8对26AWG(线径)10G TurboTwin QSFP 计算机通讯线缆16KE2LF035

16KE2LF035 CONSTRUCTION
Pair Component
Conductor: 26 AWG Solid Silver Plated Copper, 0.0159 Inch Diameter
Insulation: 0.0145 Inches of Foam Polyolefin, 0.045 Inch Diameter, Color – Natural
Pair: 2 Singles Laid Flat and Parallel
Drain Wire: 28 AWG Solid Silver Plated Copper, 0.0126 Inch Diameter
Pair Shield: Aluminum/Polyester Tape, Aluminum Side Facing In, 25% Overlap, Color – Yellow
Pair Jacket: Polyester Tape
Pair Diameter: 0.055 x 0.095 Inches Nominal
Pair Identification: Pairs sequentially numbered on entire length of pair.

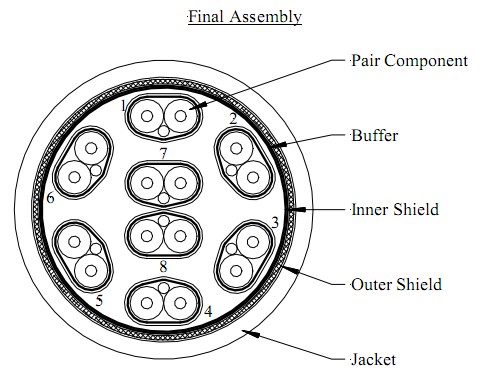

16KE2LF035 Final Assembly
Core: 8 Pairs (#1-8) Cabled Together
Buffer: Foam Polyolefin Tape
Inner Shield: Aluminum/Polyester Tape, Aluminum Side Facing Out, 25% Overlap
Outer Shield: 38 AWG Tin Plated Copper Braid, 85% Coverage
Jacket: 0.032 Inches of Flexible PVC, Color – Black
Diameter: 0.345 Inches Nominal
Print Legend (White Ink): “MADISON CABLE (UL) TYPE CL2 75°C 26 AWG CSA AWM II A/B 75°C 30V FT4 TurboTwin™ 10G  102-0002 RoHS COMPLIANT {Date Code}”

16KE2LF035 ELECTRICAL CHARACTERISTICS
Differential Impedance: 100 ± 5 Ohms @ TDR
Mutual Capacitance: 14 pF/ft Nominal
Time Delay: 1.35 ns/ft Nominal
Time Delay Skew (Within Pair): 70 ps/8.5 m Maximum
Time Delay Skew (Between Pairs): 350 ps/8.5 m Maximum

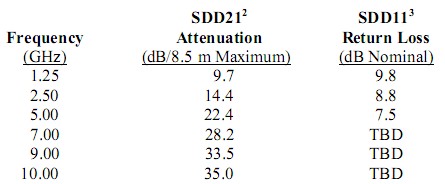

madison cable
Differential to Common Mode Conversion (SCD21)2: 26 dB Minimum
Conductor DC Resistance: 0.040 Ohms/ft Nominal @ 20°C

16KE2LF035 MECHANICAL CHARACTERISTICS
Bend Radius (5 x OD): 1.73 Inch Minimum, tested in accordance with SFF 8417

16KE2LF035 SAFETY CERTIFICATION
UL Listing: Type CL2 as specified in Article 725 of the National Electrical Code CSA Certification: AWM II A/B 75°C 30 Volts FT4
RoHS Compliance: In Accordance to European Directive 2002/95/EC, Issue 13.2.2003
