Madison Cable麦迪逊高端高品质高速电缆，8对24AWG（线径）10G TurboTwin QSFP计算机通讯线缆16KF2LF031

16KF2LF031 CONSTRUCTION
Pair Component
Conductor: 24 AWG Solid Silver Plated Copper, 0.0201 Inch Diameter
Insulation: 0.018 Inches of Foam Polyolefin, 0.056 Inch Diameter, Color – Natural
Pair: 2 Singles Laid Flat and Parallel
Drain Wire: 26 AWG Solid Silver Plated Copper, 0.0159 Inch Diameter
Pair Shield: Aluminum/Polyester Tape, Aluminum Side Facing In, 25% Overlap, Color – Yellow
Pair Jacket: Polyester Tape
Pair Diameter: 0.064 x 0.117 Inches Nominal
Pair Identification: Pairs sequentially numbered on entire length of pair.

16KF2LF031 Final Assembly
Core: 8 Pairs (#1-8) Cabled Together
Buffer: Foam Polyolefin Tape
Inner Shield: Aluminum/Polyester Tape, Aluminum Side Facing Out, 25% Overlap
Outer Shield: 38 AWG Tin Plated Copper Braid, 85% Coverage
Jacket: 0.032 Inches of Flexible PVC, Color – Black
Diameter: 0.400 Inches Nominal
Print Legend (White Ink): “MADISON CABLE (UL) TYPE CL2 75°C 24 AWG CSA AWM II A/B 75°C 30V FT4 TurboTwin™ 10G 101-9458 RoHS COMPLIANT {Date Code}”

16KF2LF031 ELECTRICAL CHARACTERISTICS
Differential Impedance: 100 ± 5 Ohms @ TDR
Mutual Capacitance: 14 pF/ft Nominal
Time Delay: 1.35 ns/ft Nominal
Time Delay Skew (Within Pair): 80 ps/10 m Maximum
Time Delay Skew (Between Pairs): 350 ps/10 m Maximum

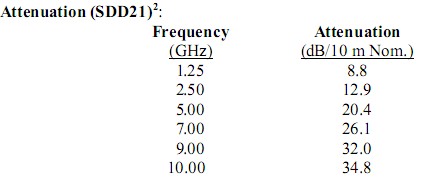

Differential to Common Mode Conversion (SCD21): 28 dB Nominal
Conductor DC Resistance: 0.025 Ohms/ft Nominal @ 20°C

16KF2LF031 SAFETY CERTIFICATION
UL Listing: Type CL2 as specified in Article 725 of the National Electrical Code CSA Certification: AWM II A/B 75°C 30 Volts FT4
RoHS Compliance: In Accordance to European Directive 2002/95/EC, Issue 13.2.2003
